采用UV紫外光LED照明技術, 傳統易折損的石英或液晶光纜導出UV光的設計在全新誕生的 INVIZ UVin面前將成為歷史。

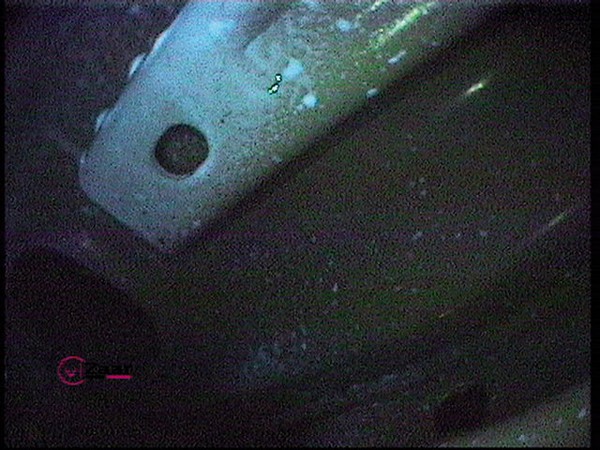

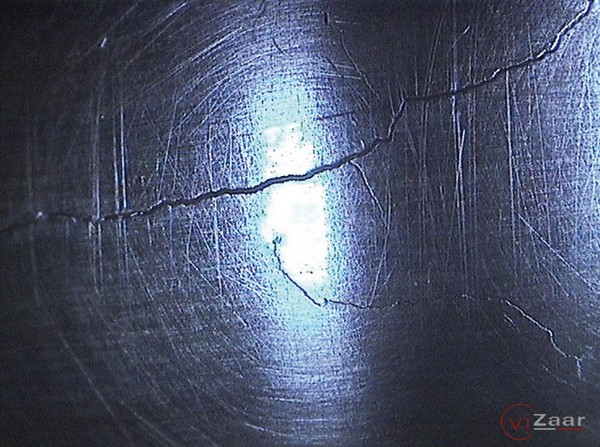

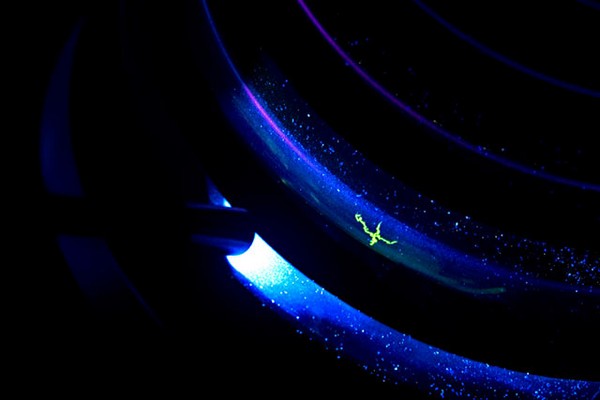

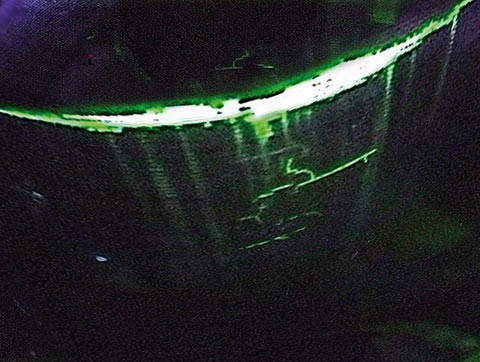

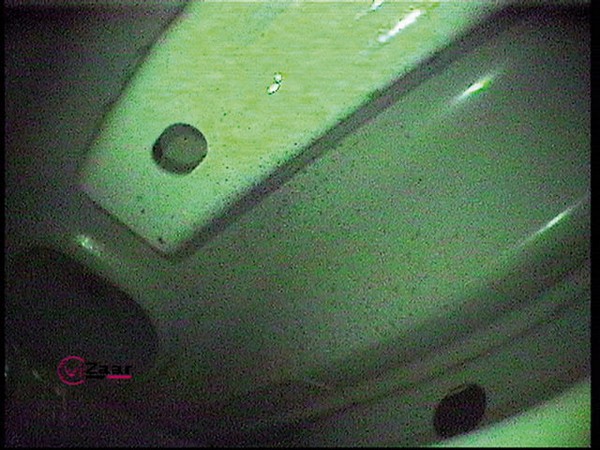

在UV光的模式下進行PT和MT內窺熒光檢測,發射UV365nm波段,同時可配備可調的白光照明輔助判斷缺陷,增加缺陷辨識度 。
多功能紫外線視頻內窺鏡有兩種不同直徑和長度4米的臺式和8米或15米的卷盤設計。
僅為12毫米的UVin12.7探頭能進入任何檢視環境即使進入口非常的小。UVin43具有4顆高強度UV LED照明光源能為巨大的腔體檢測環境下,得出細節豐富的檢視圖像,如大型發動機氣缸、飛機起落架等。
Technical data UV-LED video endoscope INVIZ UVin 4 S / 4 RF
96 - 256VAC, 50 / 60Hz / 60 Watt
(W) 236 mm x (H) 133 mm x (D) 285 mm, desktop
4.3 kg
UV emission 0 - 100%, white light 0 - 100%, White Balance adjustment
S-Video / composite video, PAL or NTSC available
PAL: 440.000 pixel / (H) 752 x (V) 582 NTSC: 380.000 pixel / (H) 758 / (V) 492
Standard: 130° FOV at 0° DOV
Insertion tube 4 m / 10 mm, camera head 12,7 mm, probe and head stainless steel / polyurethan
Remote Focus control incl. 65° FOV Remote Focus lense system, light control pendant incl. 2,5 m cable
Technical data UV-LED video endoscope INVIZ UVin 15 S / 15 RF (8 S / 8 RF)
(W) 429 mm x (H) 450 mm x (D) 285 mm, reel design
13.1 kg (15 m probe)
PAL: 440.000 px / (H) 752 x (V) 582 NTSC: 380.000 px / (H) 758 x (V) 492
Insertion tube 15 m (8 m) / 10 mm, camera head 12.7 mm, probe and head stainless steel / polyurethan
Remote Focus control incl. 65° FOV Remote Focus lense system, light control pendant incl. 2.5 m cable
Light parameters
100 mm distance scope – target / 0° DOV, +/- 20° : 1000 µW/cm² (10 W/m²), remaining visible part less 10 lx. Scope of illumination > FOV
> 10.000 hrs
40 lumen, 2 LED, Scope of illumination > FOV
Recommended consumables
Fluorescent magnetic materials, grain size 2-14 µm, fluorescence coefficient min. 2 cd/W, ideal mixing ratio must be evaluated before usage
Typ I (fluorescenting) penetrant according AMS – 2644, Level 3 and 4 / (method A)
All materials emitting visible light due to absortion of 365 nm UV energy
Operating environment / storage
-15°C to +65°C (+5°F to +150°F)
-20°C to +45°C (-4°F to +115°F)
1.5 bar / 15 m water
