(W) 320 / 12.6” x (H) 30 / 1.18” x (D) 230 / 9.06”

1.3 kg / 2.85 lbs

Base Unit: integrated recording | Portable: shoulder harness

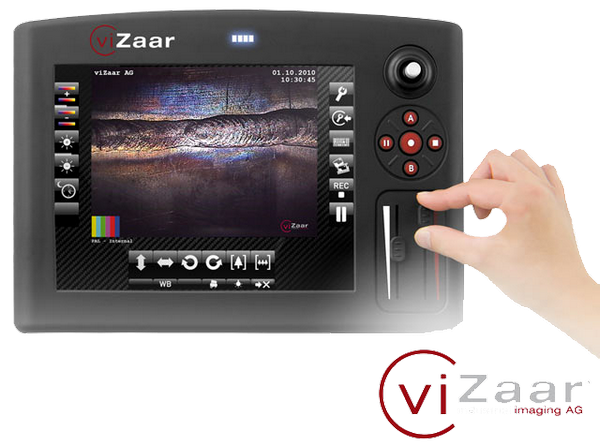

10.4“ LCD, contrast 1200:1, 400 cd, transreflective LED illumination, 262.144 colors, viewing angle all directions +/- 90°

Resistive touch screen incl. five direct access buttons and joystick

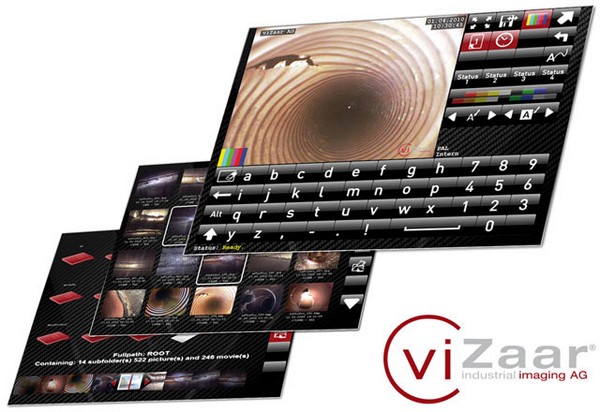

Saving pictures and movies in low, medium and high resolution. Unlimited video recording. Full version file manager (create, copy, delete, rename files and folders). Includes all image processing features (flip, mirror, rotate, 8x zoom, text editing, image enhancement by long exposure 40 ms -10 sec., image filtering, contrast enhancement, brightness, full screen mode and point marker feature). Full version text generator (additional 99 spaces for standard configurations, full color management for text and background). Customizable color reference charts. Enables free positioning of picture settings. Up to 9 password-protected user accounts with individual configurations. Multi-lingual user interface. Multi-lingual on-board manual.

(W) 335 / 13.19” x (H) 410 / 16.14” x (D) 275 / 10.83”

7.4 kg / 16.4 lbs (9.9 kg / 21.8 lbs X-WAY)

Operation temperature 5°F to +118°F (-15°C to +48°C) | Storage temperature -13°F to +150°F (-25° to +65°C) | Relative humidity max. 95%, non condensing

96 VAC – 256 VAC / 47Hz – 63Hz / max. 175 Watt

Aluminum–carbon fibre with elastomer bumpers

PAL or NTSC composite and S-Video, auto detecting

Analog VGA PC to monitor connector (Resolution 1024 x 768), worldwide standard

USB 2.0, recording remote control, 12VDC / 500mA Aux-Out, external compressed air, rechargeable battery

Operation temperature 5°F to +118°F (-15°C to +48°C) | Storage temperature -13°F to +150°F (-25° to +65°C) | Relative humidity max. 95%, non condensing

Lifetime guarantee | High efficiency LED illumination | 7,8 Watt | Daylight quality 6.500 K

Up to 60 hours of high resolution MPEG4 video-recording or several thousand BMP and JPG high quality screen shots

Dimensions in mm / inch: (W) 635 / 25” x (H) 510 / 20.08” x (D) 365 / 14.37”, weight: 12.25 kg / 27 lbs, transport case with wheels

Dimensions in mm / inch: (W) 415 / 16.34” x (H) 465 / 18.31” x (D) 190 / 7.48”, weight: 3.25 kg / 7.16 lbs, transport case for spare probe.

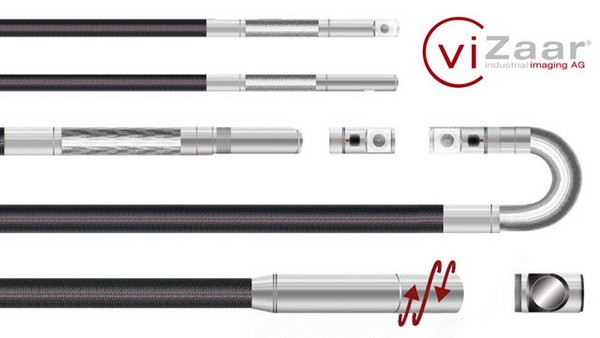

INVIZ VUMAN RA-Y 8 in mm / inch: ? 60/2.36”, 44/1.73”, 34/1.34”, 24/0.94”. INVIZ VUMAN RA-Y 6 in mm / inch: ? 44/1.73”, 19/0.75”, 10/0.39”. INVIZ Revolver 12.7 in mm / inch: ? 60/2.36”, 46/1.81”, 36/1.42”, 26/1.02”

Side view adapter for 8 and 12,7 mm probes

Capacity of coldness resistent NiMh: 9 Ah, 24 Volt. Operation time: approx. 1,5 h. Operation environment: -25°C to +45°C (-13.0°F to +113.0°F). Charging unit included

Pushing aid upon request
